OTBsegm

OTBsegm is an R package that provides a user-friendly interface to the unsupervised image segmentation algorithms available in Orfeo ToolBox (OTB), a powerful open-source library for remote sensing image processing. OTBsegm is built on top of link2GI R package, providing easy access to image segmentation algorithms.

To use {OTBsegm}, you must first install OTB on your machine. Once OTB is installed and properly linked through {link2GI} (see examples), this package allows you to easily integrate OTB’s segmentation algorithms into your workflows.

Installation

You can install the development version of OTBsegm from GitHub with:

# install.packages("pak")
pak::pak("Cidree/OTBsegm")

Example

We will see how to segment an image included in the package:

## load packages
library(link2GI)
library(OTBsegm)
library(terra)
#> Warning: package 'terra' was built under R version 4.4.3
#> terra 1.8.29

## load image
image_sr <- rast(system.file("raster/pnoa.tiff", package = "OTBsegm"))

## visualize
plotRGB(image_sr)

The image is a 500x500 meters RGB tile, with a spatial resolution of 15 cm in Galicia, Spain. The meanshift algorithm has the next important arguments:

• spatialr: spatial radius of the neighborhood

• ranger: range radius defining the radius (expressed in radiometry unit) in the multispectral space

• minsize: minimum size of a region (in pixel unit) in segmentation. Smaller clusters will be merged to the neighboring cluster with the closest radiometry. If set to 0 no pruning is done. The image’s resolution is 1.2 m, therefore, a value of minsize = 10 means that the smallest segment will be \(10 * 1.2^2 = 14.4 m^2\).

In order to use the algorithms, we need to link our OTB installation using {link2GI}:

otblink <- link2GI::linkOTB(searchLocation = "C:/OTB/")

Once we are connected, we can apply the segmentation algorithm and visualize the results:

results_ms_sf <- segm_meanshift(
    image    = image_sr,
    otb      = otblink,
    spatialr = 5,
    ranger   = 25,
    maxiter  = 10,
    minsize  = 10
)
#> Reading layer `filecfc6b37181f' from data source
#>   `C:\Users\User\AppData\Local\Temp\RtmpAjZLFx\filecfc6b37181f.shp'
#>   using driver `ESRI Shapefile'
#> Simple feature collection with 811 features and 1 field
#> Geometry type: POLYGON
#> Dimension:     XY
#> Bounding box:  xmin: 621000 ymin: 4708385 xmax: 621300 ymax: 4708685
#> Projected CRS: ETRS89 / UTM zone 29N

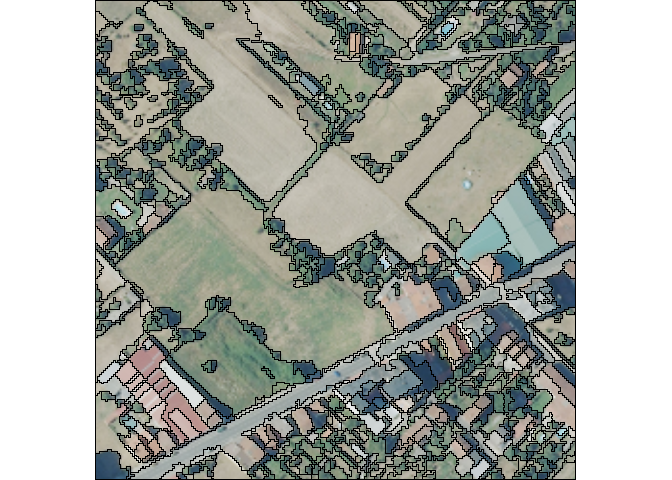

plotRGB(image_sr)
plot(sf::st_geometry(results_ms_sf), add = TRUE)
